SHARP 505nm 35mW Green Laser Diode

-
SHARP 505nm 35mW Green Laser Diode Small Divergence Angle Laser Diode
[Features]
1. Small divergence angle
2. Stable performance
[Specifications]
Product Name: 505nm green laser diode
Country of Origin: Japan
Output Power: CW 35mW
Operating Current: Max 100mA
Operating Voltage: Max 7.5V
Package Type: T018(5.6mm)
Working Temperature: -10~+60°C
Storage Temperature: -40°C~+85°C
Welding Time: less than 10 seconds
Welding Temperature: less than 260°C
Working Life: less than 10,000 hours

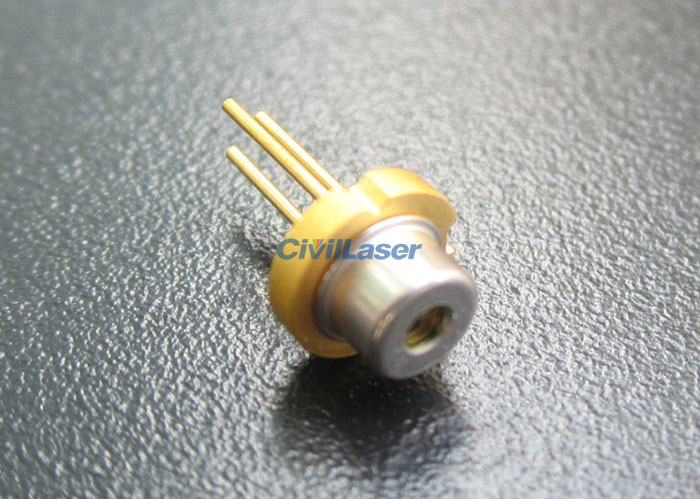

505nm 35mW green laser diode

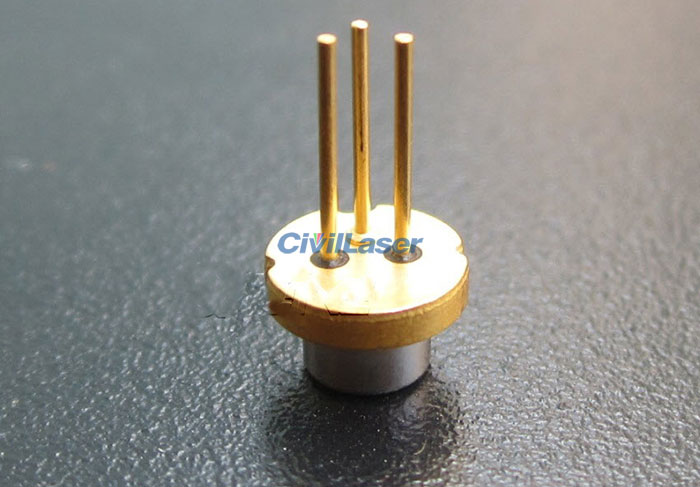

505nm 35mW green laser diode
