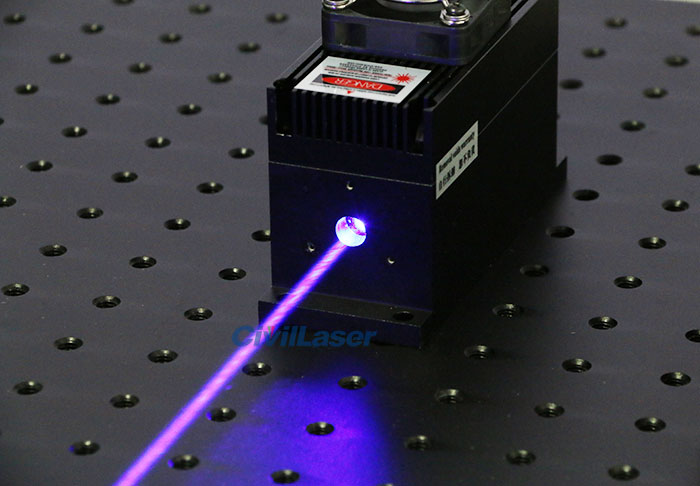

488nm 50mW~80mW Blue Semiconductor Laser

-

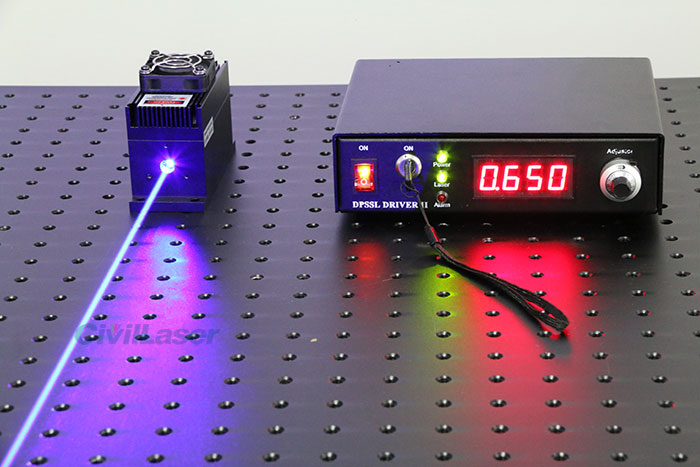

488nm 50mW~80mW Semiconductor Laser  Blue Laser Beam With Power Supply
[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
[Applications]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar


[Specifications]
Product Name: 488nm Semiconductor Laser
Product Include: Laser system + Controller + Power source
Laser Shape: Circular, aspect ratio<1.1:1
Lead Time: 1~3 weeks,  Custom product available!
Output Wavelength: 488±5 nm
Output Power: 50mW~80mW (Choose)
Working Current: 1.20~2.0 A
Operating mode: CW or Modulation
Spatial mode: TEM00
Residual infrared(1064,808,946nm etc): <0.01%
Linewidth: <0.1 nm
Pointing Stability: <0.05 mrad
Divergence Angle: <3x0.5mrad
Bean Height: 25mm
Beam Size: 2x4 mm
Beam Diameter: 2 mm
Beam Divergence:  0.5 mrad
Power Stability:  <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Modulation:  0~30khz Analog or TTL
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃




488nm semiconductor laser
