EYDFA-L-HP-BA-30-SM-M High Power EDFA SM Fiber Laser Module

-

The L-band high-power erbium-doped fiber amplifier is based on the principle of stimulated amplification of optical signals in erbium-doped fiber. It adopts efficient single-mode fiber optical amplification design and high-power laser heat dissipation technology to achieve high-power output of 1570~1605nm wavelength laser. It has the advantages of high power and low noise and can be used in fiber optic communication systems, fiber optic sensing, laser radar, etc.

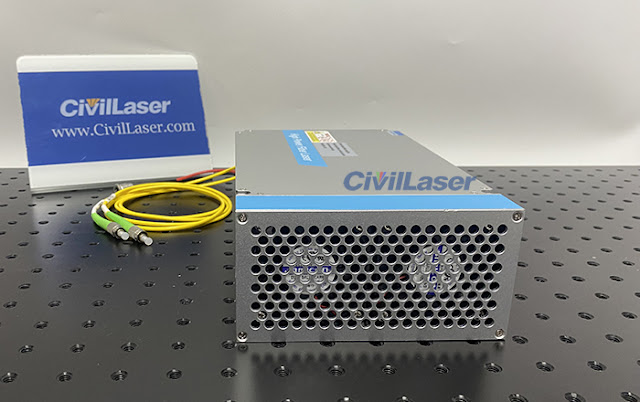

Today I am introducing a brand new module-type 30dBm high-power erbium-doped fiber amplifier, which can also be customized as a desktop module. The operating wavelength is L-Band 1570nm~1605nm, and C-Band amplifiers can also be customized. High power EDFA module has built-in cooling fan. The Input & Output fiber tpe here is SMF-28e, and PM fiber can also be customized. There are two control modes, ACC (Automatic Current Control) & APC (Automatic Power Control). The amplifier can also be controlled by software, the Remote Control Port is DB9-RS232.

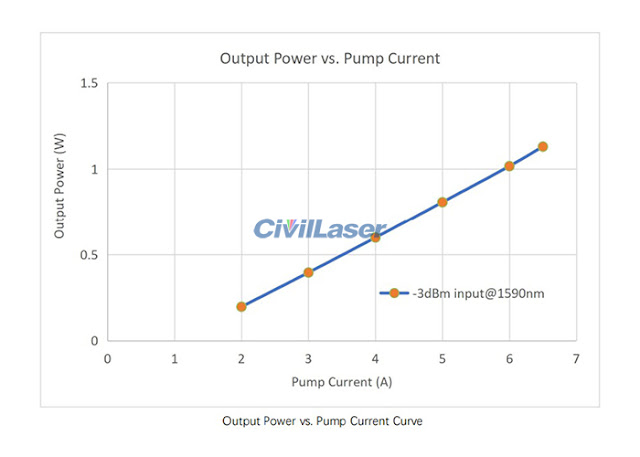

The product test report.





You can find more detailed information about this fiber amplifier by searching EYDFA-L-HP-BA-30-SM-M on Civillaser.com.
