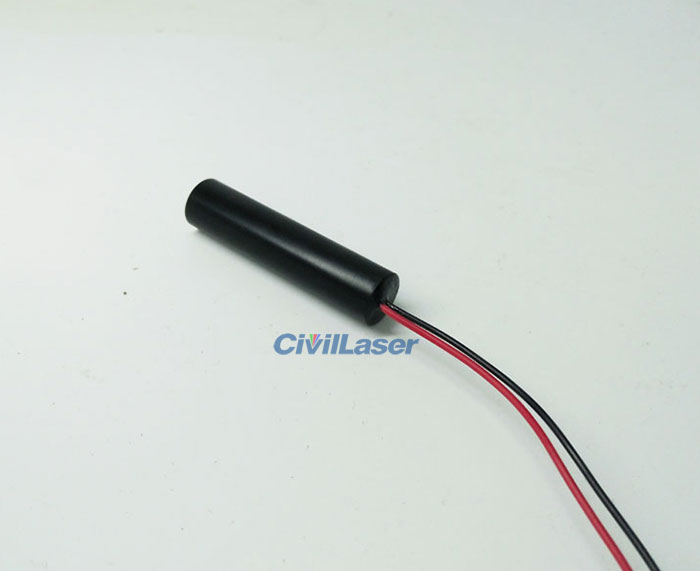

940nm Laser Diode Module Dot

-
940nm 100mW Infrared Laser Module Dot APC Driver Circuit
[Specifications]
Wavelength: 940nm
Output Power: 100mW
Laser Safety: Class IIIB
Circuit Mode: CW
Driver Circuit: APC
Lens: Glass collimator
Housing Material: Aluminum
Line Width: <5*10mm at 10m
Divergence Angle: <0.7mard
Operating Voltage: 2.8~3.5V
Operating Current: <200mA
Operating Temperature: -20℃~+50℃
Storage Temperature: -40℃~+85℃
Mean Time to Failure: >8000H
Size: 10*35mm(Diameter*Length)

940nm laser module
