Strong Infrared Laser Source From CivilLaser -- 1532nm 3W

-
1532nm 3W semiconductor laser with power supply CW modulation together
[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
1550nm laser
[Specifications]
Product Name: 1532nm IR Laser
Spatial Mode: Multimode
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 1532±1nm
Output Power: 3000mW
Operation Mode: CW or Modulation
Polarization: 10:0.1
Pointing stability: <0.05 mrad
Beam Size: 6mm
Beam Height: 25mm
Power stability: <±3% per 2 hrs
Temperature Stabilizing: TEC
Beam quality(M2): <2
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Modulation:  0~10khz
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Warranty: 1 Year

Note:

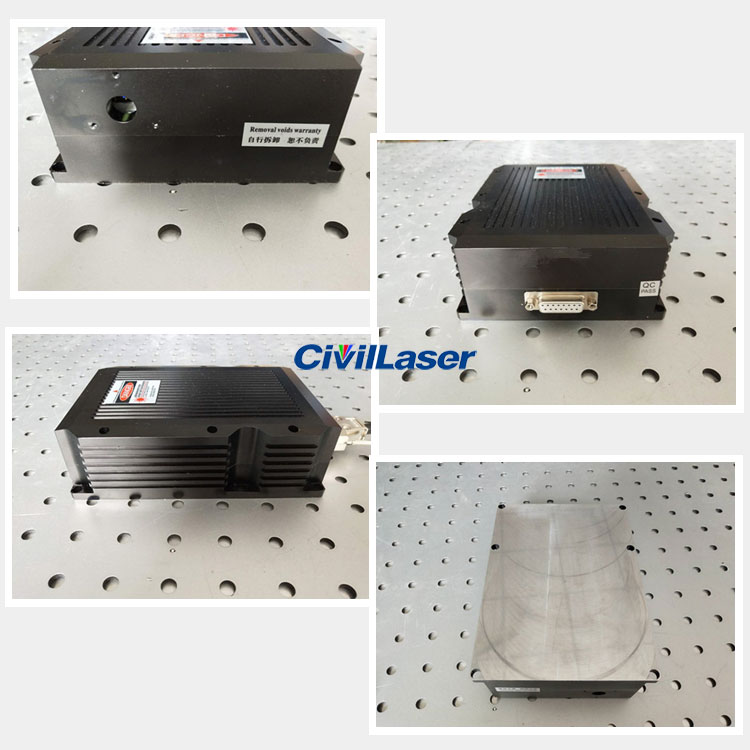

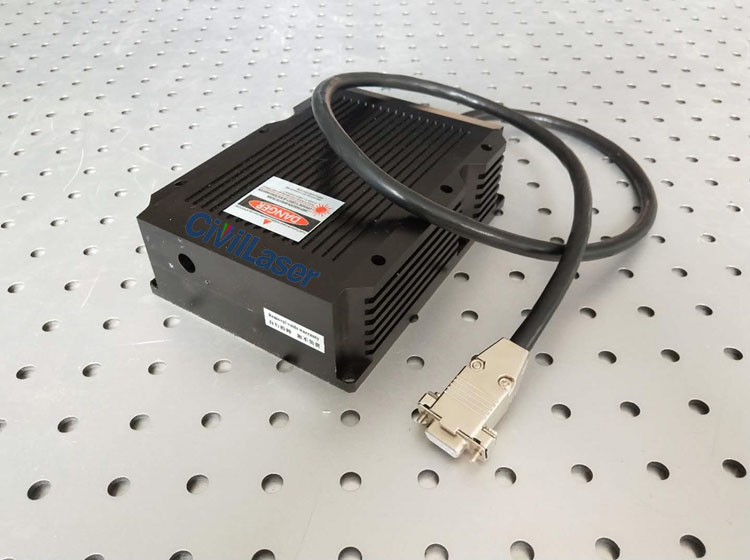

The picture is for reference only, different out power lasers, with different laser sizes.
If customer is concerned about the laser size, please contact us before purchasing.

1550nm laser
