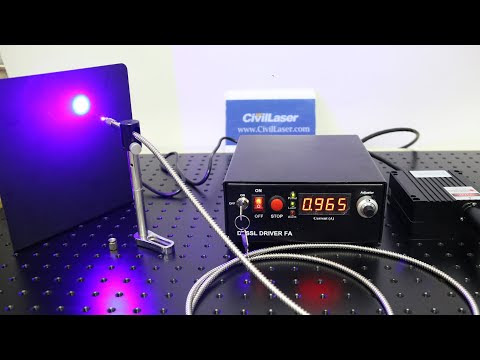

This is a 435nm 18W high power blue laser coupled optical fiber . Its fiber is pluggable. The Adjustor button on the power supply is used to adjust the working current, and the laser output power can be adjusted by adjusting the current. The laser supports CW continuous working and Modulation working mode, which can be adjusted by the slider button on the back of the laser power supply. Laser output without fiber optic installed. Here the optical fiber interface at the laser module end is FC/PC, align the buckle, insert the fiber, and tighten the fixing nut. Laser output after installing the optical fiber . Please go to CivilLaser learn more details about this 435nm 18W MM fiber coupled laser.

  808nm fiber-coupled laser uses PM fiber coupling , which has the advantages of high coupling efficiency and good output laser beam quality. The TEC temperature control system is used to ensure that the laser is more stable and has better performance. Compact structure, strong and reliable, suitable for various industrial and scientific research applications. This is 808nm 100mW infrared laser system coupled polarization-maintaining fiber . The working voltage is AC 90~240V and supports wide range voltage. Its laser power can be adjusted from 0~100mW, and it supports two working modes of CW/Modulation. 808nm is infrared laser, invisible laser, here use infrared sensitive film to observe the spot. The test report of 808nm 100mW IR PM fiber coupled laser system.

 Ytterbium-doped fiber amplifier (YDFA) generates gain by pumping ytterbium-doped fiber with semiconductor laser , which is used to amplify laser signals in the 1030~1100nm band, Hi1060 single-mode fiber output, the output power is continuously adjustable, with high gain and low The advantage of noise. The desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A more compact modular YDFA is also available, which is convenient for users' system integration. Both desktop YDFA and modular YDFA can support PC software control and serial port command control. What we are going to talk about today is 37dBm 5W single-mode YDFA and 40dBm 10W PM YDFA. First up is 5W SM YDFA. This fiber amplifier built-in 3 cooling fans.  The test report of YDFA-37-SM. The following is 40dBm PM YDFA. It's a high power polarization maintaining ytterbium-doped optical amplifier. Civil Laser's high power
